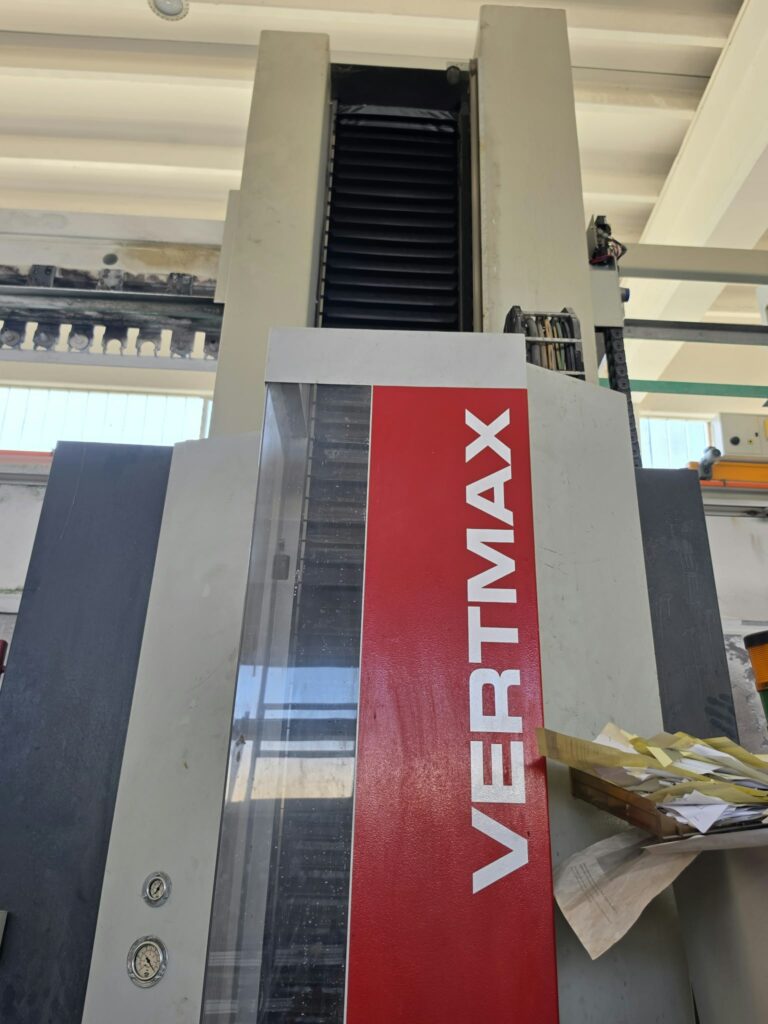

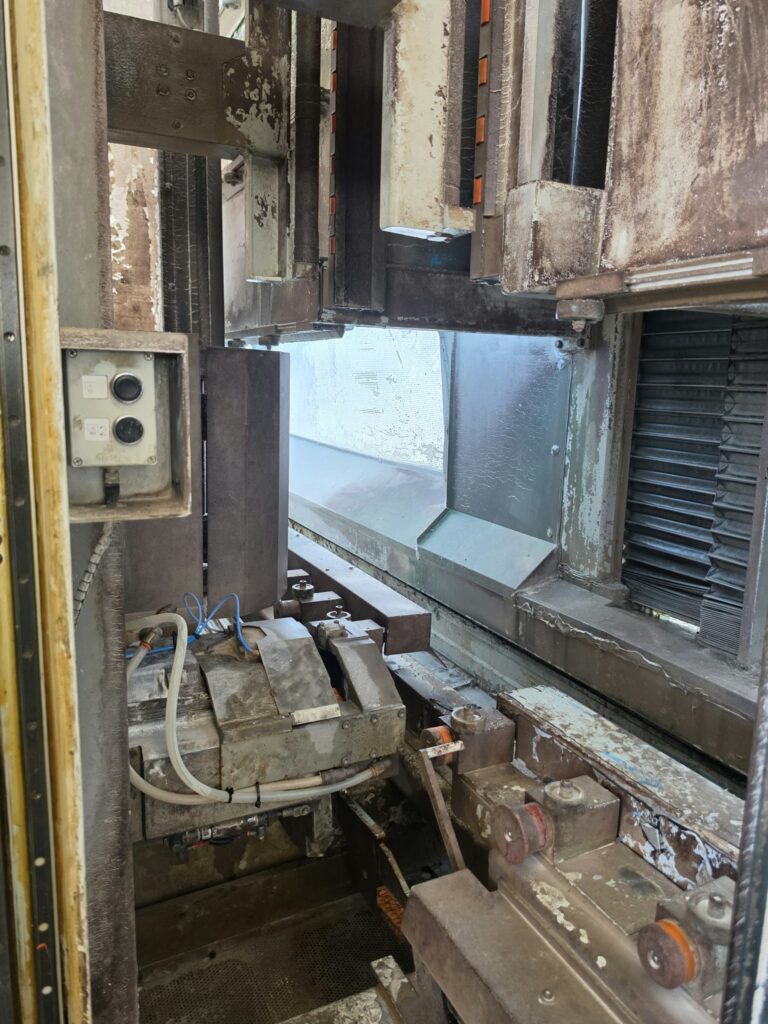

INTERMAC VERTMAX 2.6 – Anno 2014

Vertical CNC

Maximum machinable sheet size mm 5000 x 2600
Minimum machinable sheet size mm 500 x 300
Machinable glass thicknesses mm 3 – 25
Suction cup carriage speed m/min 80
Y-axis speed m/min 40
Speed of glass feed on input and output roller modules m/min 30
Electrospindle power kW 2 x 6.5
Maximum spindle rotation rpm 12000
Maximum diameter of the front head grinding wheel mm 150
Maximum diameter of the rear head grinding wheel mm 100
Maximum drill diameter mm 80
Tool coupling ISO 40
Tool magazine positions up to 14+15
Maximum power required kW 63
