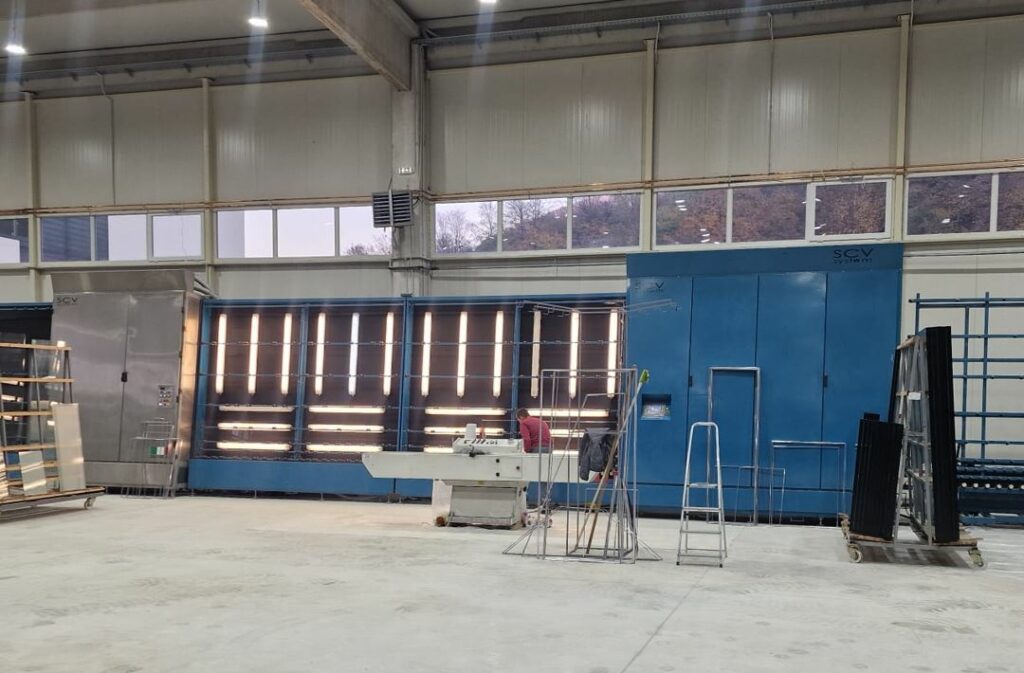

SCV SYSTEM ADL 2500/6 – Year 2012

Stainless steel vertical washing machine (6 brushes) +

Panel press – 3500 racks

Maximum insulating glass unit dimensions: 2,500 x 3,210 mm (height x length); minimum: 170 x 400 mm (height x length).

Insulating glass unit thickness: 10 to 60 mm.

Voltage: 3 x 400 V + N + PE, 50 Hz.

Total installed power: 45.5 kW.

Length: 20,000 mm – Rack length: 3,500 mm.

Width: 2,600 mm – Overall height: 3,620 mm.

Working height: 570 – 610 mm.

Compressed air: maximum consumption 70 l/min.

Operating pressure: 6 bar.

Noise level: within 80 dB(A).

Total weight: 6.000 kg.

Working Direction Left to Right
