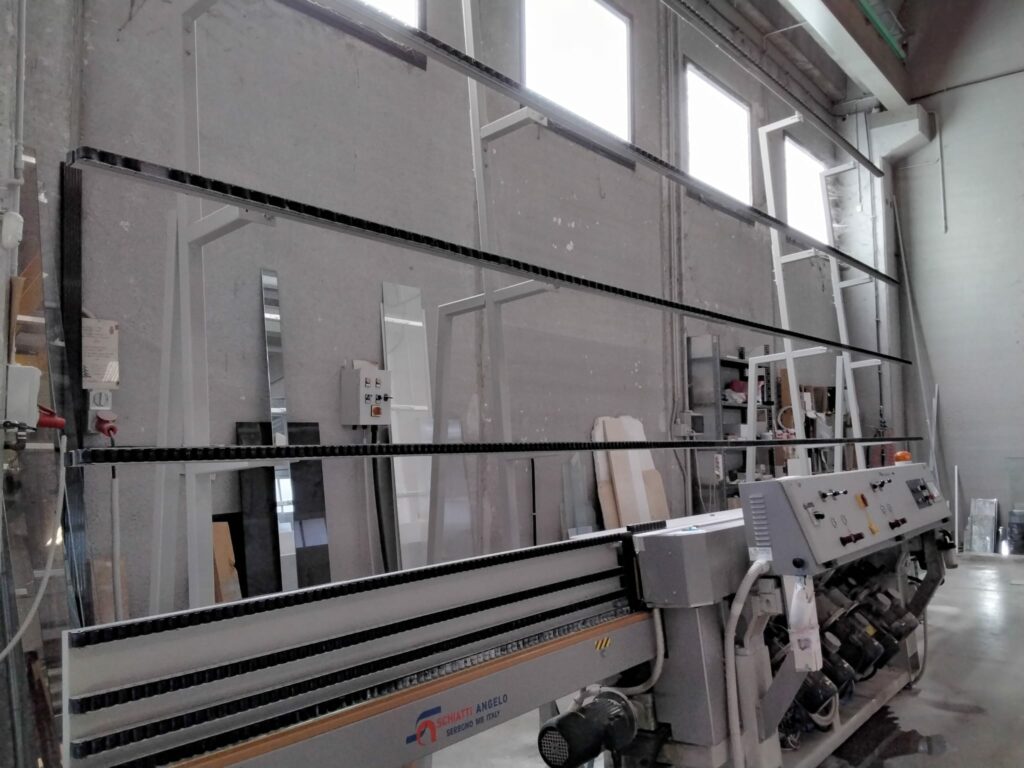

SCHIATTI FPS SME 8 – Year 2017
STRAIGHT GRINDING MACHINE 8 Wheels
Machine for the processing of flat edge and arris – mitering from 0° to 45° Especially suitable to medium/big glass companies for the production of mirrors, shelves for furniture, laminated glasses, glass tables and stairs.
• Conveyor-track composed of rubber pads with six bearings, fixed to a chain that glide along steel guides
• The conveyor doesn’t require continuous lubrication

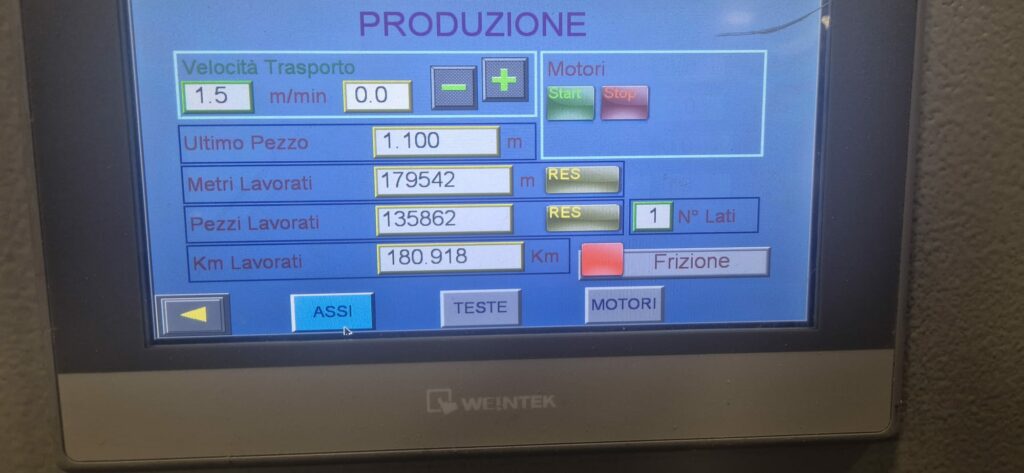

• PLC touch screen to adjust thickness, working speed, mitering system, to input and display all the working parameters and diagnosis of faults
• Independent adjustment of the diamond wheels
• Automatic adjustment of the polishing wheels

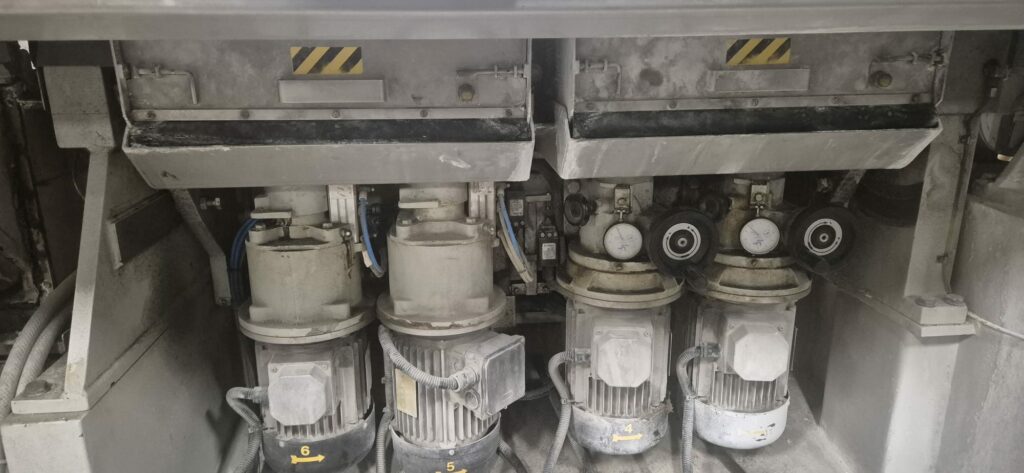

• Double speed motors for the polishing wheels
• Possibility to work both with liquid and synthetic cerium oxide
• At the inlet of the machine a device allows the operator to increase or decrease the glass removal up to 4mm without the need to adjust the diamond wheels
• Close–circuit water cooling system

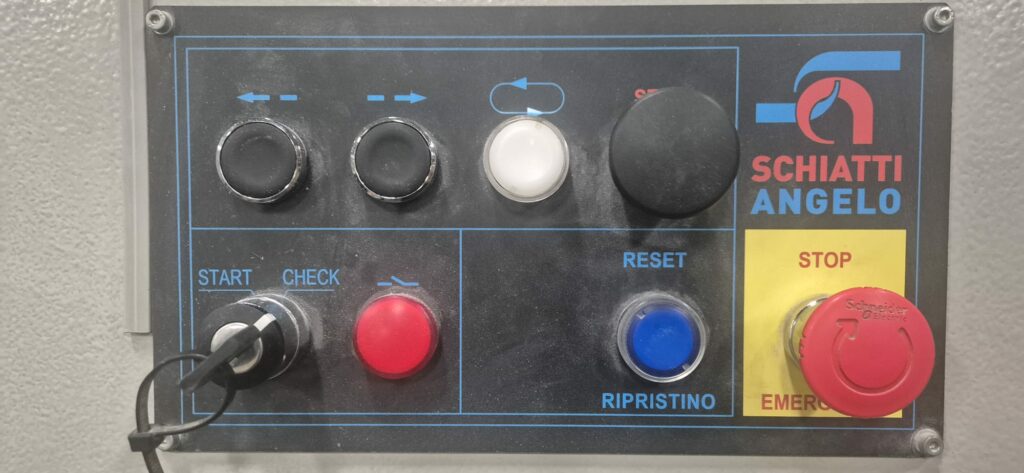

• Protection and safety devices to protect the operator
• Electrical system in compliance to the EC in force
Min workable: 80 x 80 mm
Thickness: 3-30 mm
Speed 0.5 – 5,5 mt/min
Power : 14 Kw
Variable Angle: 0-45°
