• Temperature of 950 ° C
• Useful dimensions of the bending chamber 1200x1200x600
• Maximum dimensions of the sheets to be bent 1100x1100x4 mm
• Minimum dimensions of the plates to be bent 300x300x4 mm
• Heating and bending cycle: 15 minutes = Production 1 pack every 7 min. 30 sec.
• Cold-cold cycle about 70 min.
• Annealing cycle 7.5 min.
• Cooling cycle 47.5 min.

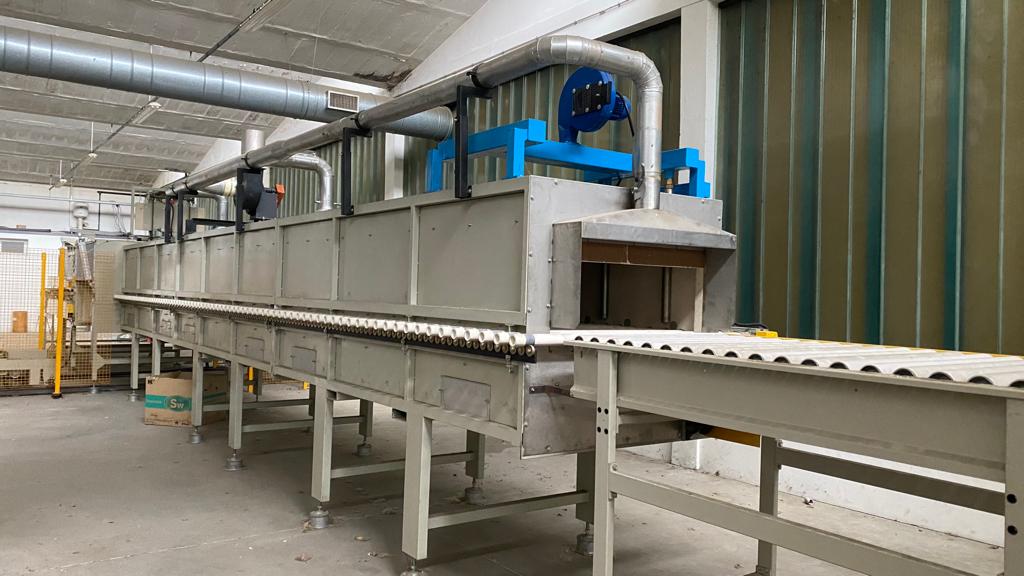

• Total length of the oven 17 meters

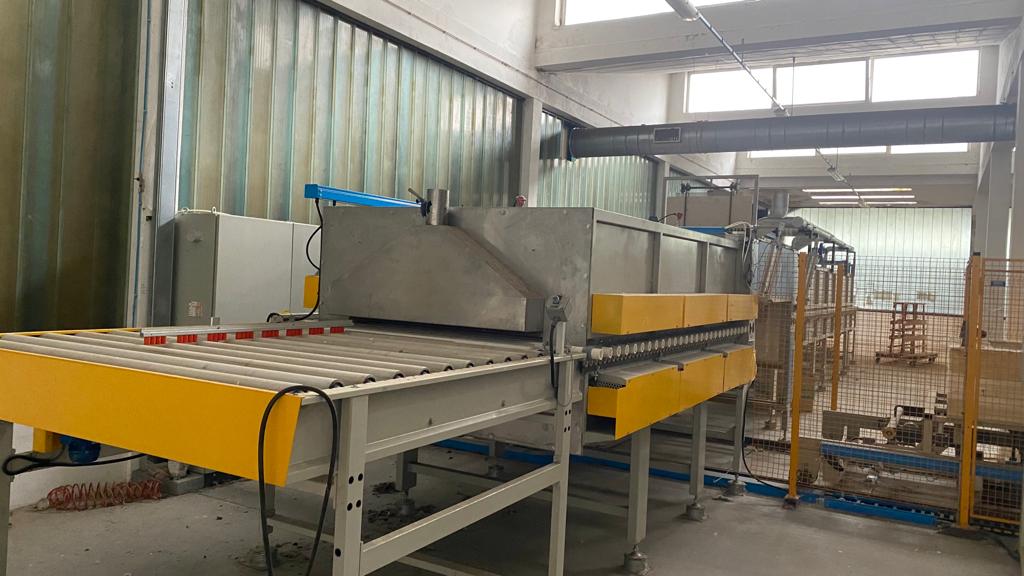

• 2 meter kiln entrance roller conveyor, advancement operation fast intermittent
• Preheat 1.4 meters, fast forward operation slow
• Heating 1.4 meters, slow and fast forward operation
• 1.4 m curvature, fast forward operation slow fast
• 1.4 mt annealing, fast slow forward operation rapid
• Cooling 11.20 meters, feed operation slow
• A movable diaphragm divides annealing from cooling
• Rolls diameter 60, center distance 120 ceramic, (for fused silica only i in the heating and bending area + 5%)
• Mixed heating: electricity, gas
• n. 4 burners of 20,000 Kg / cal. with automatic ignition and flame control
• n. 2 self-regulated gas zones
• 0.75 kW combustion fan
• 0.75 kW smoke suction fan
• 20 kW bending resistors

Lower drilling template consisting of shaped cordirite plates inserted between the rollers and resting on a plate that will be raised by means of a pneumatic piston having a maximum stroke of 500 mm

Upper template with wings that close in case of particularly closed curvature.

A lifter keeps 1 glasses lifted from the rollers curved in the annealing zone over time of curvature, after which the diaphragm is raised and while
the newly curved glasses come transferred in annealing, those from annealing are transferred 1n cooling.

The movement of the rollers is controlled by 2 gearmotors controlled by inverters.

The 1st pulls the first six modules and has 2 tow speeds:

1. the normal slow forward speed
2. transfer speed to the next section in fast 8 – 10 times higher than the 1st (2 meters of kiln feeding roller conveyor with operating drive motor reducer
   intermittent. 4 m of kiln unloading roller conveyor pulled by the 2nd kiln towing gearmotor)
