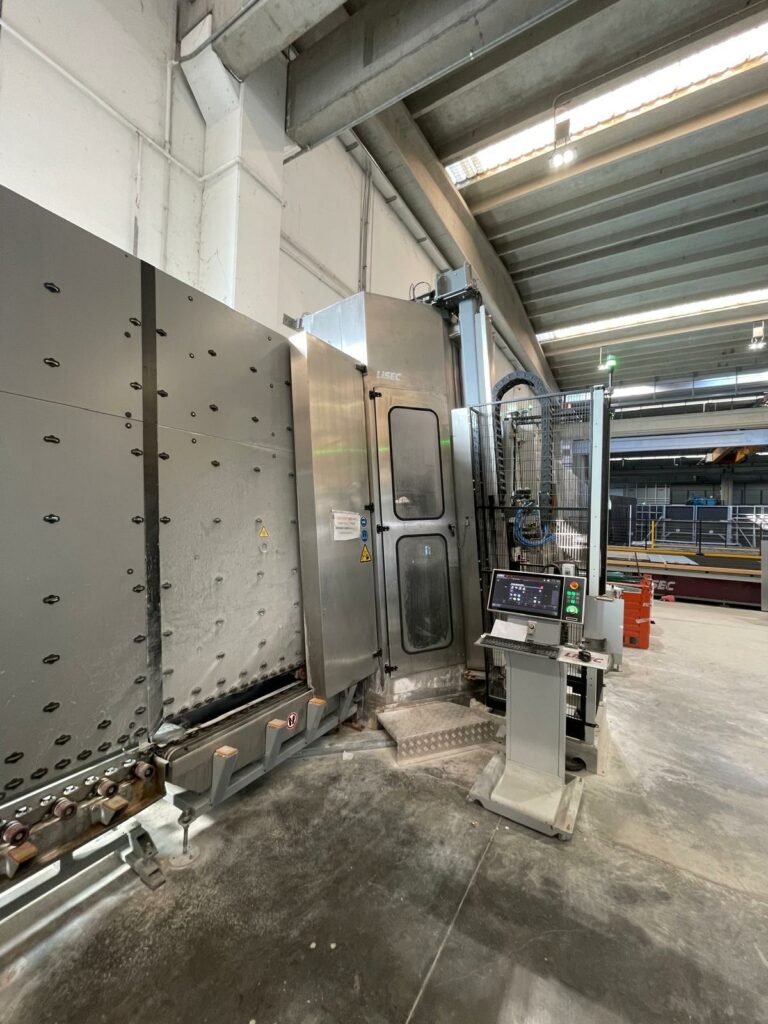

LISEC KSR-25 – Year 2024
Compact Vertical Glass Edge Seaming Machine for Rectangles and Shapes
Glass height 2.500 mm
Glass thickness 2,3 – 19 mm (pass-through transport up to 30 mm)
Minimal size 350 x 180 mm
Maximal size 3.500 x 2.500 mm
Transport height 520 mm
Seaming speed max. 30 m/min at 2,3 – 9,2 mm
Speed surface grinding max. 30 m/min at 2,3 – 3,7 mm
Speed surface grinding max. 20 m/min at 3,7 – 5,6 mm
Load max. 150 kg/lm, 250 kg/lm at pass-through transport

Working direction L R
