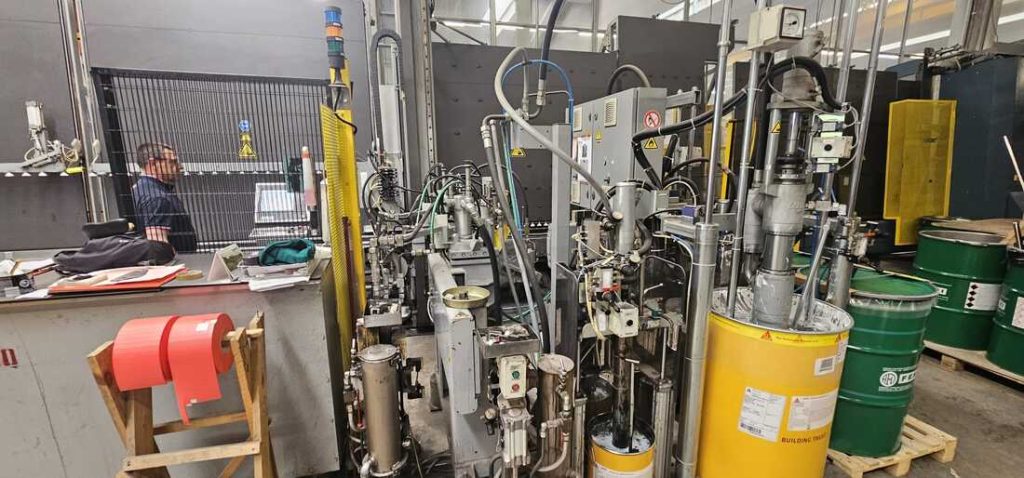

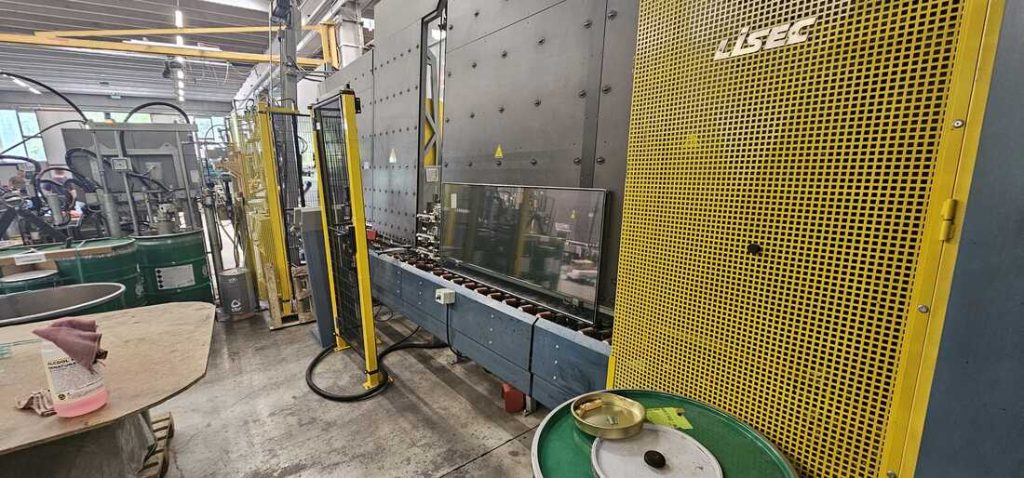

Lisec Insulating Glass Line – Year 2010

Categories: ,

Technical Information

  • Transport height 720mm
  • Direction: right-left
  • Maximum dimensions 2.500×2.000mm
  • Min. dimensions 350x180mm – 400x250mm on APKV
  • Max. load: 150 kg/m single glazing – 250 kg/m double glazing
  • Single glazing thickness 3-19mm
  • Brushes 0.12mm
  • Double and triple glazing
  • Max. panel thickness 60mm
  • Max. fixed and movable plate thickness FPS: 19mm
  • Round shapes from catalog
  • Staggered 0-100mm horizontal side – 0-200mm other sides
  • Gas press

Media

×
1 / 5
