INTERMAC VERTMAX 3.3 – Year 2020

Maximum machinable sheet size mm 6000 x 3300
Minimum machinable sheet size mm 500 x 300
Machinable glass thicknesses mm 4 – 26

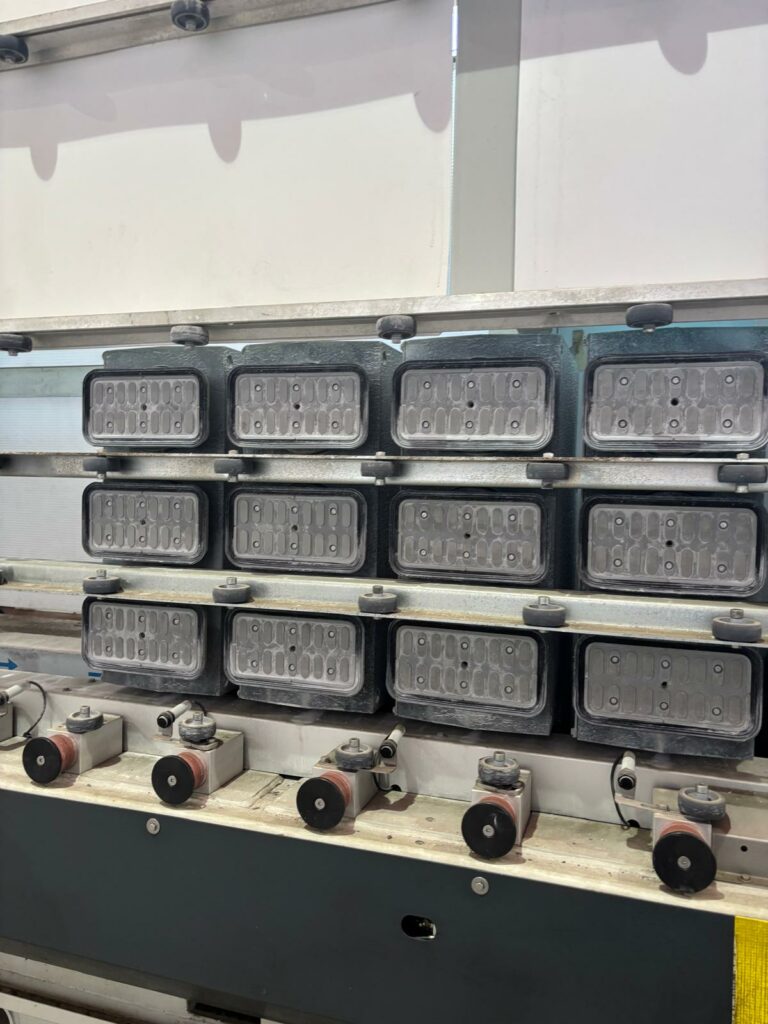

Suction cup carriage speed m/min 80
Y-axis speed m/min 40

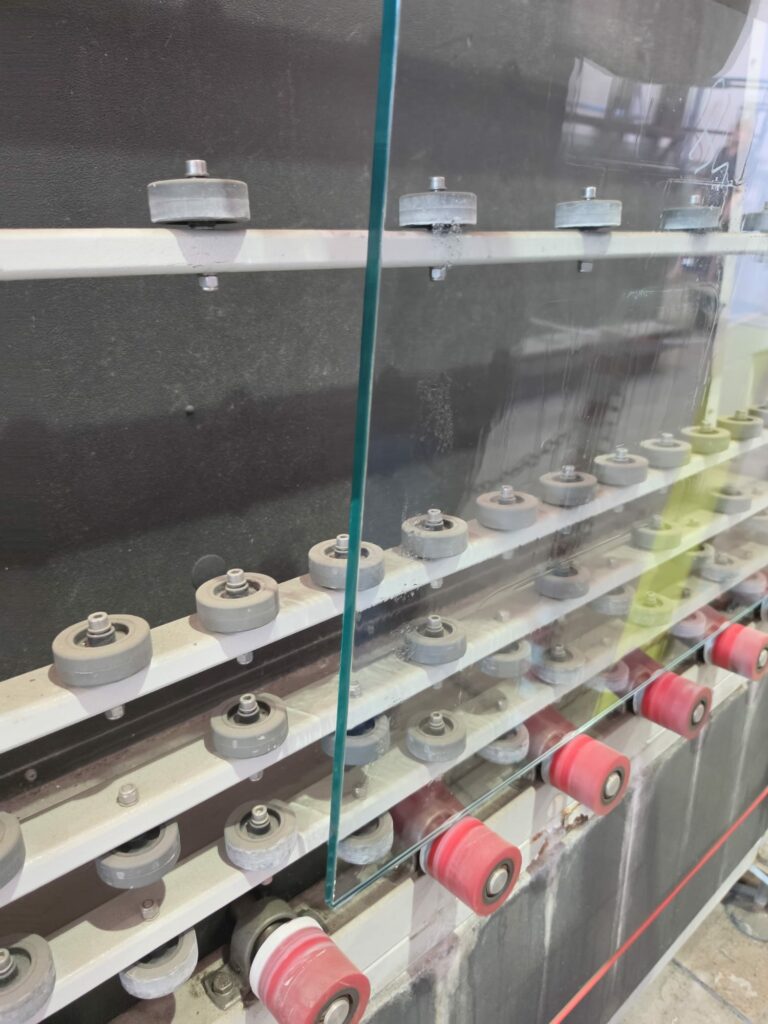

Speed of glass feed on input and output roller modules m/min 30
Electrospindle power kW 1 x 9.5 (S1) 1 x 6.5 (S1)
Maximum spindle rotation rpm 12000
Maximum diameter of the front head grinding wheel mm 150
Maximum diameter of the rear head grinding wheel mm 100
Maximum drill diameter mm 80
Tool coupling ISO 40
Tool magazine positions up to 18+19
Maximum power required kW 63

Working direction Left-Right

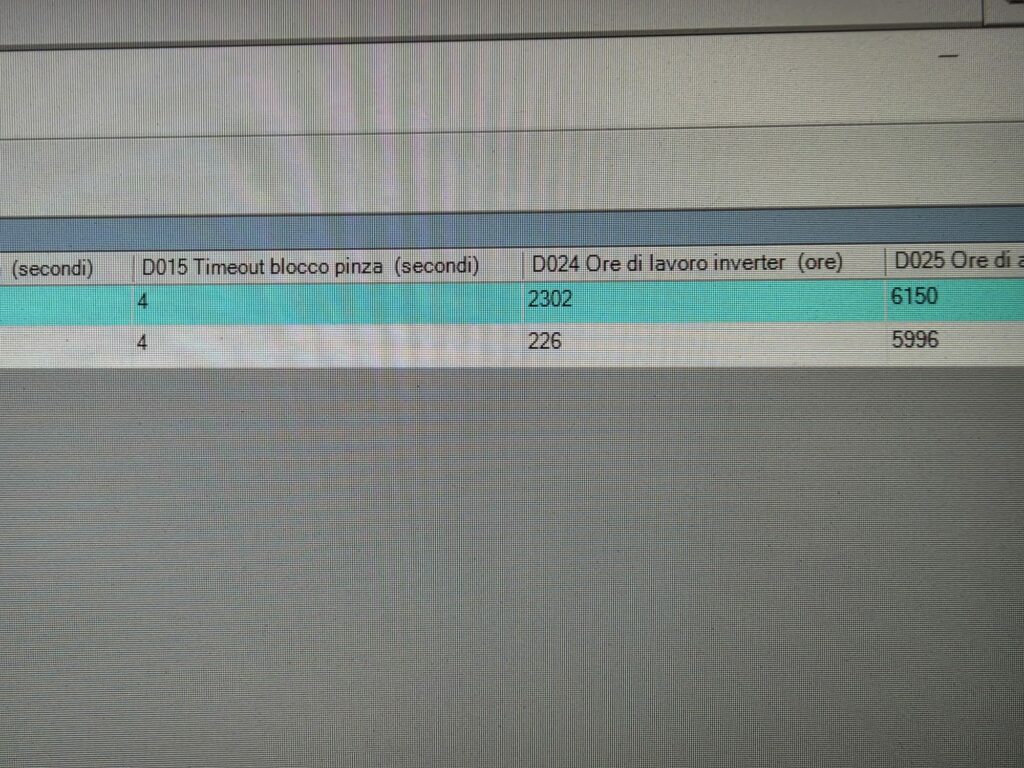

Working hours 2302
